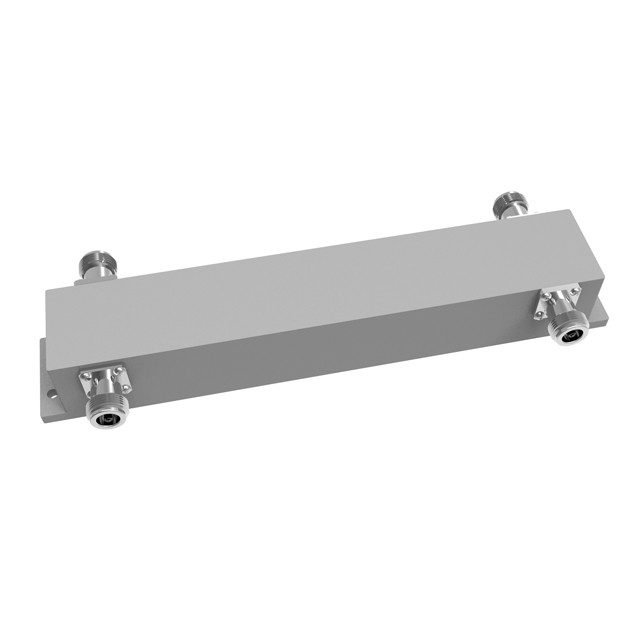

350-520MHz 2in 2out N Female Hybrid Coupler

  • 1
  • 2
  • 3

Brand Name : Vinncom

Model Number : VN-HC2x2-035052-ON-xxx

Certification : ROHS ISO9000

Place of Origin : China

MOQ : 5pcs

Price : Negotiable

Payment Terms : D/A, L/C, D/P, T/T

Supply Ability : 60pcs per day

Frequency : 350-520MHz

Connector : N Female

Color : Customized

OEM/ODM : Acceptable

Application : DAS IBS

ROHS : Compliance

Design : Wide Band

Contact Now

450-900MHz 2in 2out DIN Female Hybrid Coupler

  • Portable for installation
  • Low PIM -165dBc@43dBm*2
  • Good returen loss
Part Number VN-HC2x2-035052-ON-xxx
Operating Frequency ( MHz ) 350-520
Impedance ( Ohm ) 50
VSWR ≤1.20
Coupling (dB) 3.0±0.5
Insertion Loss (dB) 3.6
Isolation (dB) ≥25
IM3 (dBc @ 2×43dBm)@xxx -140 / -150 / -155 / -160/-165
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
Dimension (mm)(L×W×H, excl connector) 244×40×28.5
Packing Dimensions (mm,L×W×H) 210×170×65
Packing Carton Size (mm,L×W×H) 530×440×80
ROHS Compliance Yes

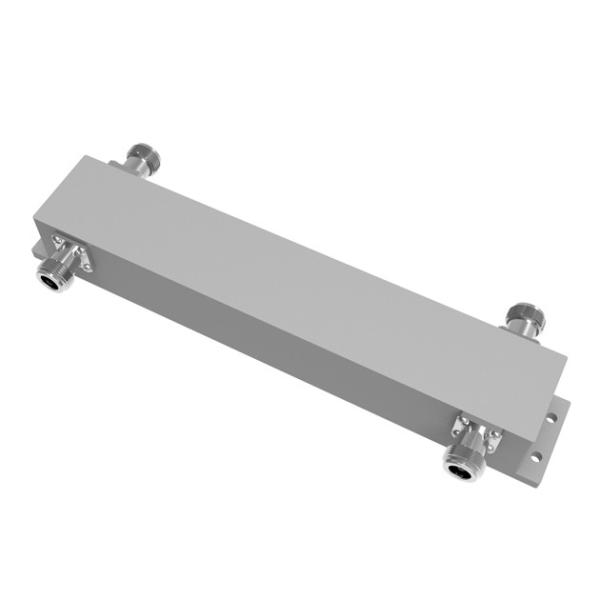

350-520MHz 2in 2out N Female Hybrid Coupler350-520MHz 2in 2out N Female Hybrid Coupler
