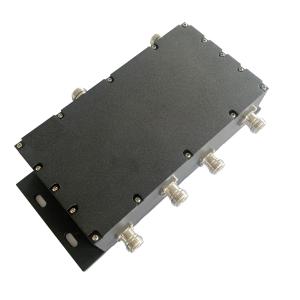

698-3800MHz N Female 4:4 Hybrid Combiner

Product Categories

HeFei Vinncom Electronic Technology Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 6983800MHz N Female 44 Hybrid Combiner
Brand: Vinncom
Price: 1 USD

Brand Name : Vinncom

Model Number : VN-HC4x4-0738-ON

Certification : RoHS/ISO9000

Place of Origin : China

MOQ : 5pcs

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100pcs per day

Delivery Time : 2-4weeks

Packaging Details : foam+box

Operating Frequency ( MHz ) : 698-3800

Impedance ( Ohm ) : 50

VSWR : ≤1.3

Insertion Loss (dB) : 6.2±1

Isolation (dB) : ≥20

IM3 (dBc @ 2×43dBm) : -160

Contact Now

698-3800MHz N Female 4:4 Hybrid Combiner

Part Number	VN-HC4x4-0738-ON
Operating Frequency ( MHz )	698-3800
Impedance ( Ohm )	50
VSWR	≤1.3
Insertion Loss (dB)	6.2±1
Isolation (dB)	≥20
IM3 (dBc @ 2×43dBm)	-160
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500
Dimension (mm)(L×W×H, excl connector)	192 × 103 × 60
Net Weight (g)	2370 ± 20
Packing Dimensions (mm,L×W×H)	210 × 170 × 65
Packing Carton Size (mm,L×W×H)	530 × 440 × 80
ROHS Compliance	Yes

698-3800MHz N Female 4:4 Hybrid Combiner

PIM TEST RECORD

698-3800MHz N Female 4:4 Hybrid Combiner
