138 To 960MHz N Female 2 Way 50Ohm Wilkinson Power Splitter

Brand Name : Vinncom

Model Number : VN-PD-013096-ON2

Certification : ROHS ISO9000

Place of Origin : China

MOQ : 5 pcs

Price : Negotiable

Payment Terms : D/A, L/C, D/P, T/T

Supply Ability : 1500pcs per day

Frequency : 138-960MHz 130-960MHz

Connector : N Female

Color : Customized

OEM/ODM : Acceptable

Application : DAS IBS Public Safety

ROHS : Compliance

Design : Wide Band

Contact Now

138-960MHz N Female 2 Way Wilkinson Power Divider For Public Safety DAS IBS

  • High isolation
  • Low Split Loss
  • Good VSWR at all ports

Part Number VN-PD-013096-ON2
Operating Frequency ( MHz ) 138-960
Impedance ( Ohm ) 50
VSWR ≤1.3
Split Loss (dB) ≤3.6
Isolation (dB) ≥18
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 50(2w as combiner)
Peak Power (Watt, max) 200

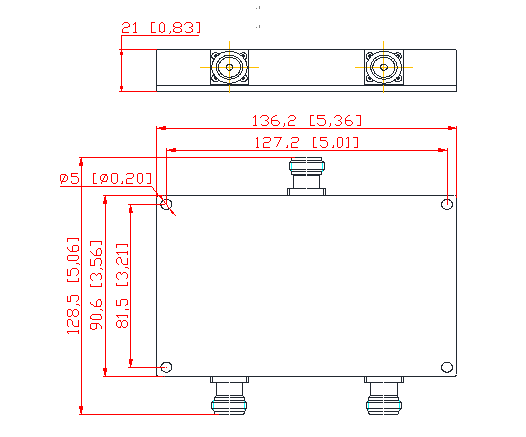

Dimension (mm)(L×W×H, excl connector) 136.2 × 90.6 × 21
Net Weight (g) 550 ± 20
Packing Dimensions (mm,L×W×H) 210 × 170 × 65
Packing Carton Size (mm,L×W×H) 530 × 440 × 80
ROHS Compliance Yes
138 To 960MHz N Female 2 Way 50Ohm Wilkinson Power Splitter

Wilkinson Power Divider (WPD) is a specific class of power divider circuit that can achieve isolation between the output ports while maintaining a matched condition on all ports. The Wilkinson design can also be used as a power combiner, the high degree of isolation between the output ports prevents cross talk between the individual channels which can be easily fabricated as quarter wave lines on circult. WPD also can be unequally divided the input power based on different usage ,.

Vinncom WPD has widely frequency range to 40GHZ ,and for sub-6Ghz

Customized products also are welcomed.
