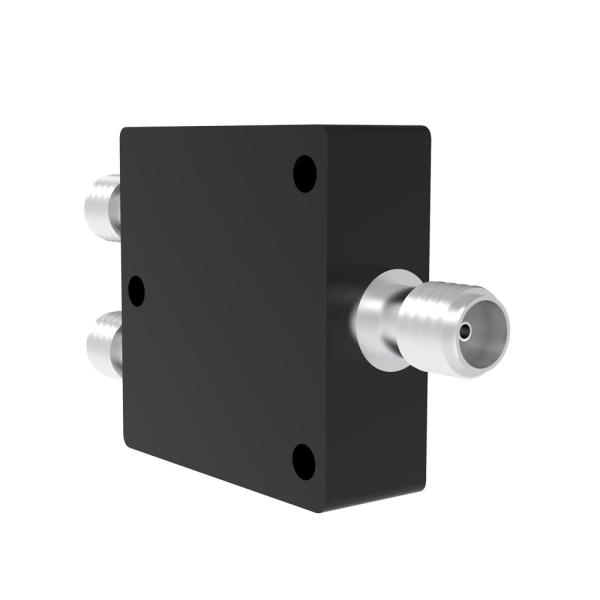

DC4G SMA Resistive Power Splitters Divider Female 2 Way

Brand Name : Vinncom

Model Number : VN-PD-4G-OS2

Certification : RoHS/ISO9000

Place of Origin : China

MOQ : 5pcs

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 50pcs per day

Delivery Time : 2-4weeks

Packaging Details : foam+box

Operating Frequency ( GHz ) : DC-4G

Impedance( Ohm ) : 50

VSWR(Input Port) : ≤1.20

VSWR(Output Port) : ≤1.20

Insertion loss : ≤6.8

Average Power (Watt max.) : 2W

Isolation(dB) : ≥5.6

Amplitude Balance(dB) : ±0.3

Contact Now

DC-4G 2 Way Resistive Power Divider SMA Female

  • Good VSWR
  • Wide band frequency
  • Less Insertion Loss

Part Number VN-PD-4G-OS2
Operating Frequency ( GHz ) DC-4G

Impedance( Ohm )

50

VSWR(Input Port)

 ≤1.20

VSWR(Output Port)

≤1.20
Insertion loss ≤6.8
Average Power (Watt max.) 2W

Isolation(dB)

≥5.6

Amplitude Balance(dB)

±0.3

Operating Temperature( ℃ )

-35 ~ + 75c

Interface

 SMA Female

Dimensions(mm,L×W×H,excl connector)

28*28*10

Dimension Tolerance(mm)

 ±0.5
Weight 21g

Mounting

 3-Φ2.7mm through-hole

DC4G SMA Resistive Power Splitters Divider Female 2 WayDC4G SMA Resistive Power Splitters Divider Female 2 Way
The characteristics of the resistive power splitters make it perfectly suitable for a few appliances and not so ideal for some. The units are generally smaller as they are made of lumped elements. They are extremely broadband, and it is the only type that operates DC onwards. Their power handling capacity is low. For applications where insertion loss and isolation are important factors, Resistive Power Splitters aren’t suitable because they have high loss and poor isolation. They are widely chosen for their simplicity as well. They are simple and can be made easily in a circuit and require minimal design and preparation. If the right resistors are used, and the construction is done right, the frequency response will be great. The Resistive Power Splitters are made from resistors and thus very cost-effective.
