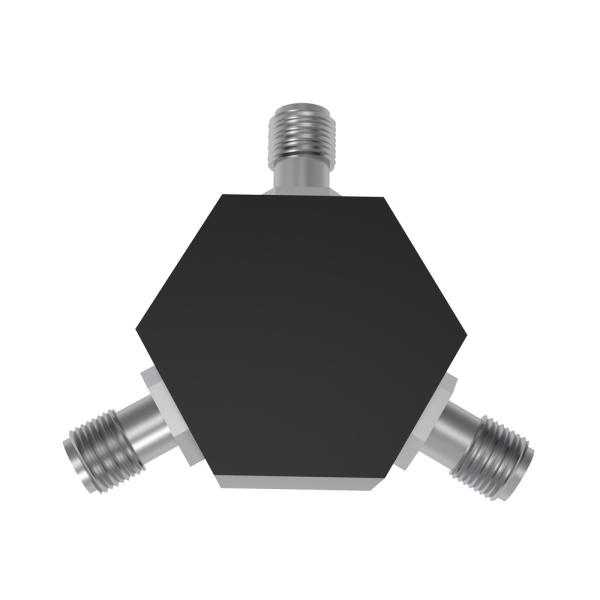

Ultrawideband SMA Antenna Power Divider 3 Way RF Combiner DC 2.4G

Brand Name : Vinncom

Model Number : VN-PD-2.4G-OS2

Certification : RoHS/ISO9000

Place of Origin : China

MOQ : 5pcs

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 50pcs per day

Delivery Time : 2-4weeks

Packaging Details : foam+box

Operating Frequency ( GHz ) : DC-2.4G

Impedance( Ohm ) : 50

VSWR(Input Port) : ≤1.20

VSWR(Output Port) : ≤1.20

Insertion loss : ≤6±0.5

Average Power (Watt max.) : 2W

Isolation(dB) : ≥6

Amplitude Balance(dB) : ±0.5

Contact Now

DC-2.4G 2 Way SMA Female Connector Resistive Power Divider

  • Good VSWR
  • Wide band frequency
  • Less Insertion Loss

Part Number VN-PD-2.4G-OS2
Operating Frequency ( GHz ) DC-2.4G

Impedance( Ohm )

50

VSWR(Input Port)

 ≤1.20

VSWR(Output Port)

≤1.20
Insertion loss ≤6±0.5
Average Power (Watt max.) 2W

Isolation(dB)

≥6

Amplitude Balance(dB)

±0.5

Operating Temperature( ℃ )

-35 ~ + 75c

Interface

 SMA Female

Dimensions(mm,L×W×H,excl connector)

24.2*28*13.5

Dimension Tolerance(mm)

 ±0.5

Mounting

 3-M2.5, depth 5mm


Ultrawideband SMA Antenna Power Divider 3 Way RF Combiner DC 2.4GUltrawideband SMA Antenna Power Divider 3 Way RF Combiner DC 2.4G

Power splitters used in rf and microwave circuit as a power allocation, and satellite radar is widely used in mobile communication field.Ultra-wideband domains such as electronic countermeasures, test and measurement. Our microwave has strong research and development production capacity, production of power splitters has good frequency characteristic, stable performance, high precision, large power and high applicability, installation simple 1 art and so on. My company has a strong ability of design and test of the products have special requirements can all provide customized production.

Product features

DC - 2.4 GHZ, wide bandwidth Excellent consistency of amplitude and phase standard working temperature and -35 ℃ to + 75 ℃ can design and produce according to customer requirements

Mainly used mobile communications satellite radar Electronic counter measures Ultra-wideband field test and measurement, etc

Please see our website for more products.
